Solar PV Cable 1500V H1Z2Z2-K TUV UL EN 50618 China Main Manufacturer
Solar PV Cable 1500V H1Z2Z2-K TUV UL EN 50618 China Main Manufacturer
Leader Solar Cable | Key Specifications
-
Environmental Resilience: Engineered for harsh outdoor conditions and extreme climates.
-
Certified Quality: Fully TUV / UL / IEC / CE certified for maximum safety.
-
Long-Term Durability: Guaranteed 25-year operational product lifetime.
-
High Compatibility: Fully compatible with all major industry-standard solar connectors.
-
Versatile Application: Ideal for utility-scale, rooftop, and floating solar plants.
-
Proven Reliability: Over 9.8 GW connected globally as of 2021.
-
Global Support: Online quoting available with Free Sample support.

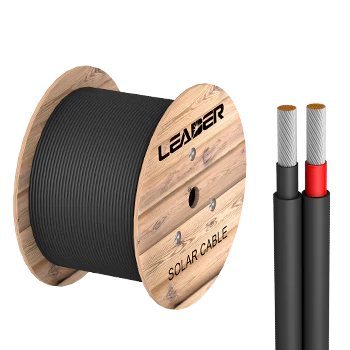

Product Description
LEADER® Solar Cable is a premium-grade, high-flexibility photovoltaic cable engineered specifically for reliable and efficient connection of solar panels within PV systems. Designed to meet the evolving demands of the solar industry, this single-core cable ensures superior performance, durability, and long-term operational safety.
Fully compatible with all major solar connectors, LEADER® solar cable is certified by leading international standards and regulatory bodies, including TÜV, UL, IEC, CE, and RETIE. It complies with globally recognized standards such as UL4703, IEC 62930, and EN 50618, guaranteeing quality, safety, and performance across diverse applications.
Engineered for Versatility & Durability
This cable is suitable for a wide range of photovoltaic power generation systems, including
Large-scale solar power plants
Rooftop solar installations
Floating solar power stations
Built to withstand extreme environmental conditions, LEADER® solar cable performs reliably in harsh outdoor climates such as:
High-temperature desert environments
High-humidity regions
Coastal areas with elevated salt exposure
Mountainous terrains
Rooftop installations exposed to direct sunlight
Reliability That Reduces Long-Term Costs
As a critical component of any photovoltaic system, connection quality directly impacts overall system efficiency and lifespan. LEADER® solar cable ensures:
Stable and secure electrical transmission
Long-term operational safety
Reduced system failure rates
Lower maintenance and operational costs over time
By combining certified quality, environmental resilience, and high-performance conductivity, LEADER® solar cable delivers dependable connectivity that supports the long-term success of modern solar energy systems.
| Conductor | Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228 |
| Insulation & Sheath Jacket | Polyolefin Copolymer electron-beam cross-linked |
| Rated voltage | 1500V/1800VDC,Uo/U=600V/1000VAC |
| Test voltage | 6500V,50Hz,10Min |
| Temperature Rating | -40°C-120°C |
| Fire Performance | Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1 |
| Smoke Emission | Based on UNE-EN 60754-2 and IEC 60754-2. |
| European CPR | Cca/Dca/Eca, according to EN 50575 |
| Water performance | AD7 |
| Minimum bend radius | 5D (D:cable diameter) |
| Optional features | Meter by meter marking, rodent-proof and termite-proof |
| Certification | TUV/UL/RETIE/IEC/CE/RoHS |
