Solar Panel Wire Pv1-f Cable For Solar Panel Connection To Inverter

Solar Panel Wire Pv1-f Cable For Solar Panel Connection To Inverter

Premium Cable for Reliable Solar Panel to Inverter Connection

Engineered to perform reliably in harsh outdoor environments, including rooftops, deserts, coastal regions, and high-humidity climates

Fully certified by TÜV, UL, IEC, and CE standards, ensuring international compliance and backed by a 25-year product lifespan

Designed for versatile applications across utility-scale solar plants, commercial rooftop systems, and floating photovoltaic installations

Compatible with all major solar connectors, providing seamless integration into modern PV systems

Proven performance record with over 9.8 GW of installed capacity connected by 2021

Contact us today for quotations, technical support, and complimentary sample requests

Product Description

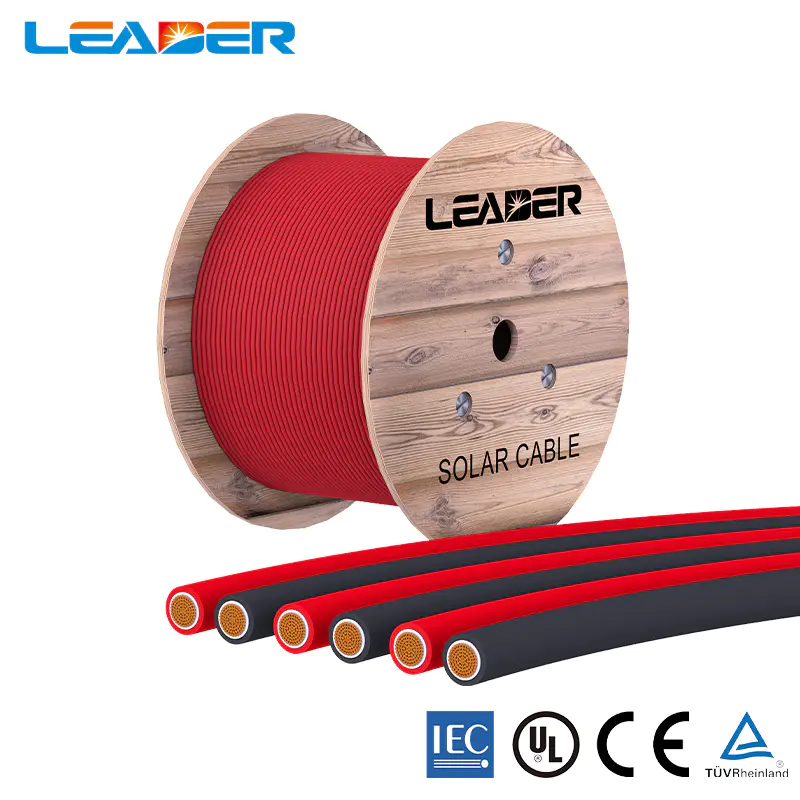

LEADER® Solar Panel Wire is a premium-grade, high-flexibility photovoltaic cable specifically engineered for secure and efficient connection between solar panels and inverters. Designed to meet the demanding requirements of modern PV systems, this single-core cable delivers outstanding durability, safety, and long-term performance.

Fully compatible with all major solar connectors, LEADER® solar cable is certified by leading international authorities including TÜV, UL, IEC, CE, and RETIE, and complies with globally recognized standards such as UL 4703, IEC 62930, and EN 50618. These certifications ensure maximum reliability, safety, and compliance across international markets.

Versatile Application Across Solar Projects

This cable is suitable for a wide range of photovoltaic power generation systems, including:

  • Utility-scale solar power plants

  • Commercial and residential rooftop installations

  • Floating solar power stations

Engineered for Harsh Environments

LEADER® solar cable is built to withstand extreme outdoor conditions, including:

  • High-temperature desert climates

  • High-humidity regions

  • Coastal areas with elevated salt exposure

  • Lakeside and marine environments

  • Mountainous terrains

Its robust construction ensures stable electrical transmission even under prolonged UV exposure and challenging weather conditions.

Long-Term Performance & Cost Efficiency

As a critical component of any solar energy system, connection quality directly impacts overall efficiency and operational lifespan. LEADER® solar cable ensures:

  • Reliable and stable power transmission

  • Long-term system safety and durability

  • Reduced failure rates

  • Lower maintenance and operational costs over time

By combining certified quality, environmental resilience, and superior conductivity, LEADER® solar panel wire supports the long-term performance and profitability of photovoltaic systems

Conductor Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228
Insulation & Sheath Jacket Polyolefin Copolymer electron-beam cross-linked
Rated voltage 1000/1800VDC,Uo/U=600V/1000VAC
Test voltage 6500V,50Hz,10Min
Temperature Rating -40°C-120°C
Fire Performance Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1
Smoke Emission Based on UNE-EN 60754-2 and IEC 60754-2.
European CPR Cca/Dca/Eca, according to EN 50575
Water performance AD7
Minimum bend radius 5D (D:cable diameter)
Optional features Meter by meter marking, rodent-proof and termite-proof
Certification TUV/UL/RETIE/IEC/CE/RoHS

Construction Conductor Construction Conductor Outer Resistance Max Current Carrying Capacity
n×mm2 n×mm mm mm Ω/Km A
(16AWG)1×1.5 30×0.25 1.58 4.90 13.3 30
(14AWG)1×2.5 50×0.256 2.06 5.45 7.98 41
(12AWG)1×4.0 56×0.3 2.58 6.15 4.75 55
(10AWG)1×6 84×0.3 3.15 7.15 3.39 70
(8AWG)1×10 142×0.3 4.0 9.05 1.95 98
(6AWG)1×16 228×0.3 5.7 10.2 1.24 132
(4AWG)1×25 361×0.3 6.8 12.0 0.795 176
(2AWG)1×35 494×0.3 8.8 13.8 0.565 218
(1/0AWG)1×50 418×0.39 10.0 16.0 0.393 280
(2/0AWG)1×70 589×0.39 11.8 18.4 0.277 350
(3/0AWG)1×95 798×0.39 13.8 21.3 0.210 410
(4/0AWG)1×120 1007×0.39 15.6 21.6 0.164 480
